Electrified
Don't worry about all the e-haters. eBikes help you carry more gear, ride further, fine tune your descending skills and amplify the fun. The eCrusher combines big travel, Forward Geometry and the super efficient Shimano E8000 drive unit.
With it's perfect integration of the Shimano Steps motor and the downtube integrated battery pushing a big 504Wh battery - the eCrusher's looks can be deceiving . Carrying over the very responsive Zero suspension design and the legendary Forward Geometry the eCrusher is an absolute blast to ride - the faster and steeper it just gets better.
66º Head angle, 170mm fork and 150mm rear suspension - Oh Yeah you will never have to hold back on the descents and at 23.5kg this has very low weight for climbing up and deep into the mountains.
Features
- 150mm Rear Travel
- 170mm Fork with 44mm Offset
- Shimano E8000 504Wh battery
- 27.5 Wheels
- Forward Geometry
- Full Carbon Frame
- 66º Head Angle ( 1 or -1º adjustable)
- Boost rear end
- Flat mount rear brake

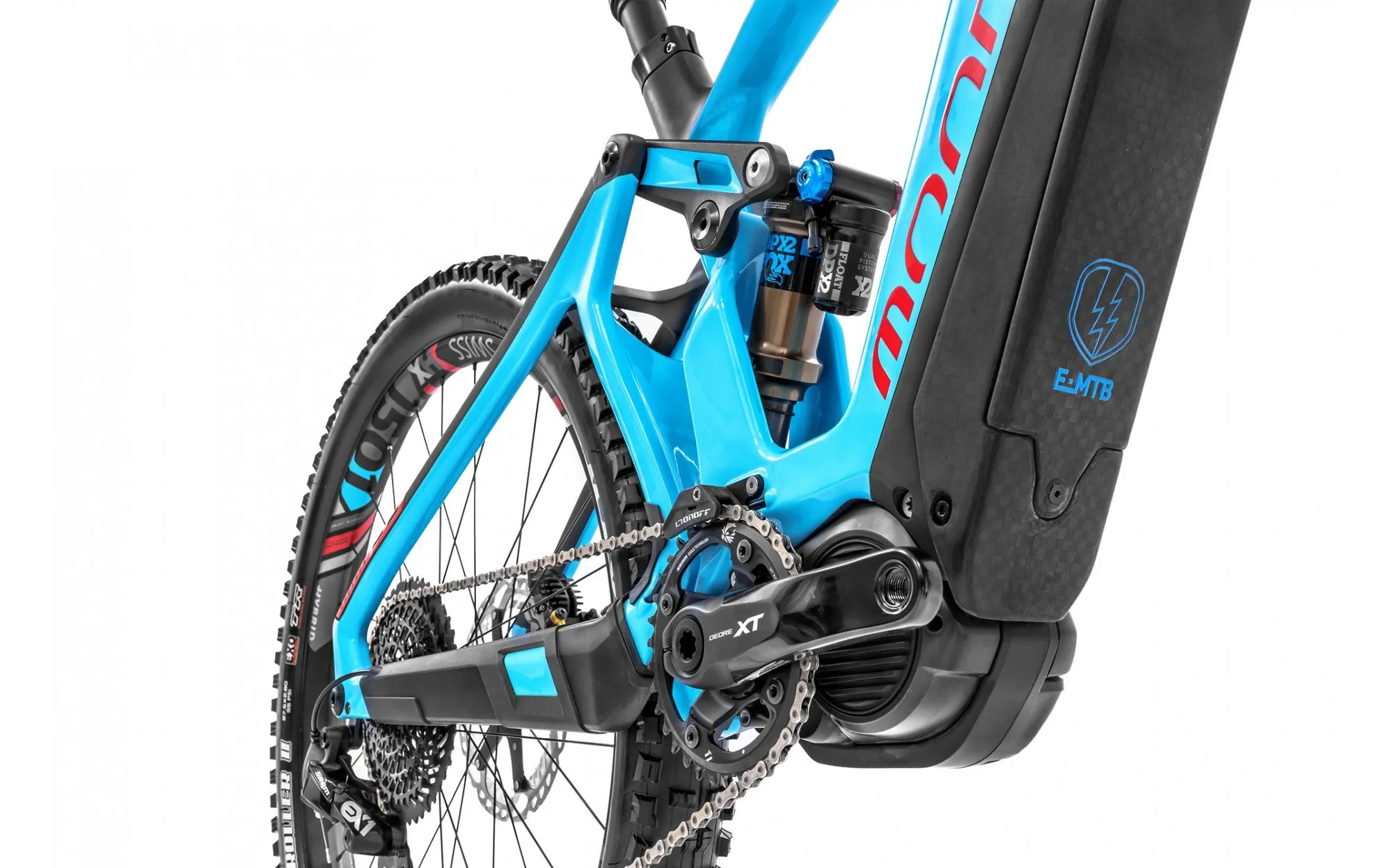

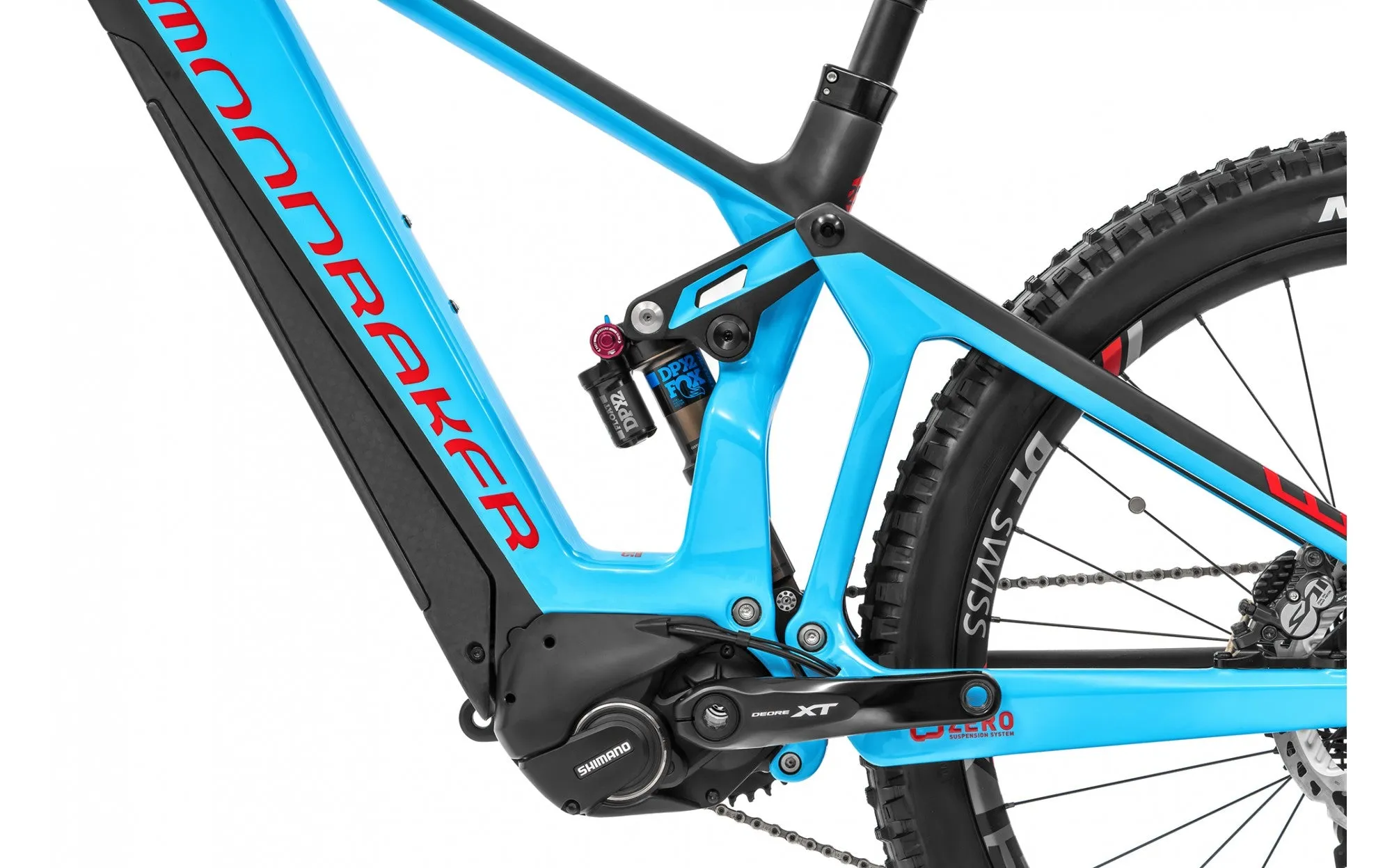

- Zero Suspension
- Downtube shock guard
- Stealth Full Carbon
- WIll fit full size water bottles
GEOMETRY & SIZING
BUILD SPEC
| Frame | Crusher 27´5 Sealth Full Carbon Structure, Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, |
| Sizes | S / M / L / XL |
| Rear shock | Fox Float DPX2 LV EVOL Factory Kashima, 205x62.5mm. Settings: compression 3 positions lever, low speed compression, low speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
| Fork | Fox 36 29 Float FIT GRIP2 EVOL Factory Kashima, 170mm, e-bike optimized, tapered steerer tube, 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Headset | Onoff Saturn tapered ACB |
| Stem | Onoff Stoic FG 30mm, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Stoic Carbon, rise: 12mm, width: 780mm, 9º backsweep, 5º upsweep, 35mm barbore |
| Grips | Onoff Diamond 1lock-on |
| Seatpost | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 365x100mm, M size: 406x125mm, L/XL size: 456x150mm |
| Saddle | SDG Fly MTN |
| Front brake | Shimano Saint M820, 4-piston caliper, RT99 203mm 2-piece Center Lock rotor with ICE technology, metal pads with cooler |
| Rear brake | Shimano Saint M820, 4-piston caliper, RT99 203mm 2-piece Center Lock rotor with ICE technology, metal pads with cooler |
| Levers | Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust |
| Rims | DT Swiss HX1501 Spline One 27´5, 35mm internal width, tubeless ready, 28 spokes |
| Spokes | DT Hybrid SP, straight pull |
| Front hub | DT 240, 15x110mm, Center Lock |
| Rear hub | DT 240, 12x148mm, 24T Ratchet system, Center Lock |
| Front Tyre | Maxxis Minion DHF 27´5x2.8, Tubeless ready, Dual compound, Exo Protection, 60TPI, folding bead |
| Rear Tyre | Maxxis High Roller II 27´5x2.8, Tubeless ready, Dual compound, Exo Protection, 60TPI, folding bead |
| Crankset | Shimano E8000 drive unit, BT-E8020 504Wh integrated battery, crankset E8000 hollowtech, 165mm |
| Bottom bracket | / |
| Chain | New Sram Eagle, 12s |
| Rear derailleur | Sram EX1, Type 3 roller bearing clutch, cage lock, 1x8s, X-actuation 1:1 |
| Shifters | Sram Trigger EX1, 8s, X-Actuation 1:1 |
| Cassette | Sram XG-899, 11-48T, 8s |
| Other | / |
| Weight | 23.5kg |
