Electrified
Don't worry about all the e-haters. eBikes help you carry more gear, ride further, fine tune your descending skills and amplify the fun. The eCrafty opts for 27.5 wheels with plus tires to improve grip and traction - which works perfectly the super efficient 500Wh Bosch Performance line motor
Mondraker's unique Forward Geometry works even better with ebikes - the faster you go, the more stable the bike becomes. Zero Suspension is efficient and offers absolute trail eating performance.
With65.3º Head angle, 160mm fork and 150mm rear suspension - The Crafty will give your plenty of options to climb and descend all day lonh.
Features
- 150mm Rear Travel
- 160mm Fork with 44mm Offset
- Bosch Performance Line CX system
- PowerTube battery 500Wh
- Purion on-board computer
- Forward Geometry
- 65.3º Head Angle ( 1 or -1º adjustable)
- Boost rear end
- Flat mount rear brake
- Stealth Evo Aluminium framset

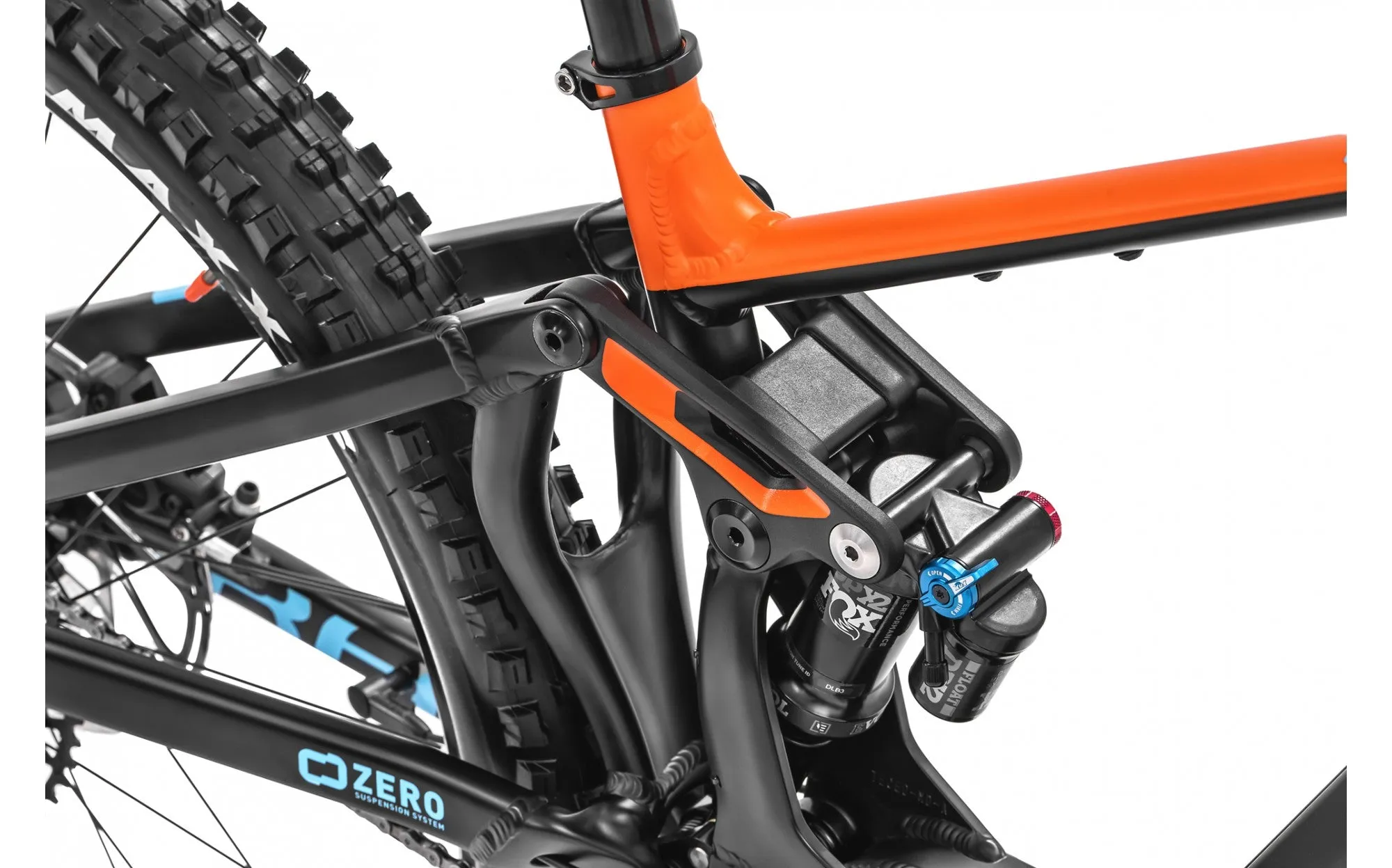

- Zero Suspension
- WIll fit full size water bottles
GEOMETRY & SIZING
BUILD SPEC
| Frame | Frame Crafty 27´5 6061 Alloy Stealth Evo, Zero Suspension System, 150mm travel, |
| Sizes | S / M / L / XL |
| Rear shock | Fox Float DPX2 LV EVOL Performance, 205x65mm |

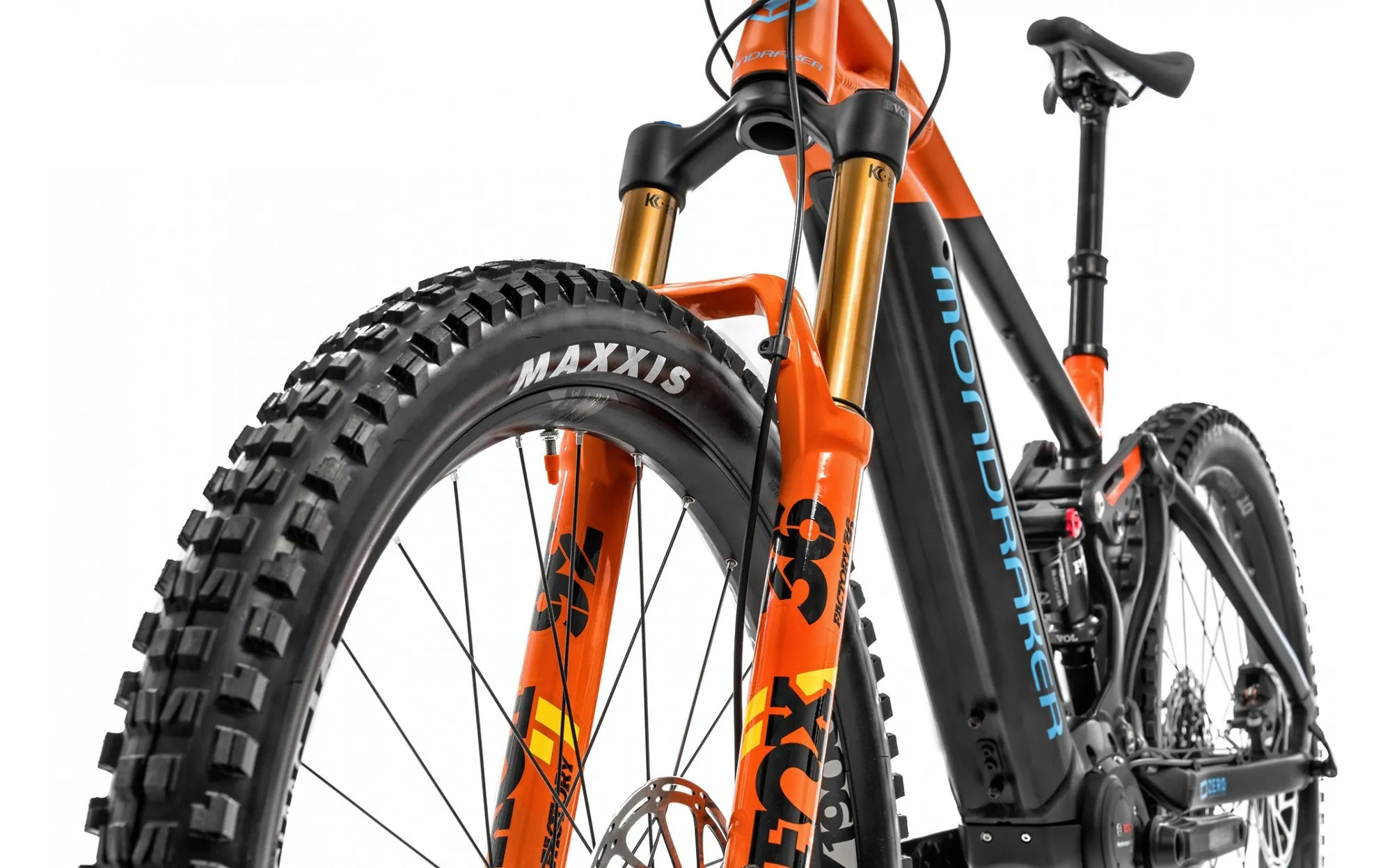

| Fork | Fox 36 29 Float FIT4 EVOL Factory Kashima, 160mm, e-bike optimized 44mm offset |
| Headset | Onoff Saturn tapered ACB |
| Stem | Onoff Stoic FG 30mm, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Mondraker double butted 6061 alloy, rise: 25mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Diamond 1lock-on |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm |
| Saddle | SDG Bel-Air 2.0, Cro-Mo rail, PU foam |
| Front brake | Sram Code R, oversized 4-piston caliper |
| Rear brake | Sram Code R, oversized 4-piston caliper |
| Levers | Sram Code R, oversized 4-piston caliper |
| Rims | DT Swiss H1900 Spline 27´5, 35mm internal width |
| Spokes | DT Hybrid SP, straight pull |
| Front hub | DT 370, 15x110mm, IS 6 bolts |
| Rear hub | DT 370, 12x148mm, IS 6 bolts |
| Front Tyre | Maxxis Minion DHF 27´5x2.8, Tubeless ready, Dual compound, |
| Rear Tyre | Maxxis High Roller II 27´5x2.8, Tubeless ready, Dual compound, |
| Crankset | Bosch Performance Line CX system, PowerTube battery 500Wh 165mm RaceFace Aeffect ebike crankset |
| Bottom bracket | / |
| Chain | Sram PC-1110, 11s |
| Rear derailleur | Sram NX, Type 3 roller bearing clutch, cage lock, long cage |
| Shifters | Sram Trigger NX, 11s, X-Actuation 1:1 |
| Cassette | Sunrace CSMS8, 11-46T, 11s |
| Other | / |
| Weight | 25.2kg |
